6 Meters
6 Meters

Antennas and Towers:

  • 4 stack of K3LR/W3TX 13 el OWAs on 68' booms on 140' 45G tower.  Each antenna individually turned by KØXG orbital ring rotators  Spacing 140/105/70/35.
  • 7 ele M2 at 105'
  • 4 XP 20 M2 for 6M moonbounce operations coming soon
  • More coming soon
  • All towers are guyed with PHILLY and have star guying at all guy levels.
  • All antennas independent and rotate 360 degrees

In The Shack:

  • Icom 7800/Icom 756 ProII; Lunar Link LA-62A, Icom PW-1 Amps ; Layered Stackmaster Antenna Switching and Matching.  Control Cabling allows quick change from M/M to SOAB Config.
  • MicroKeyer MKII / WinTest logging software/16 Networked PCs.

Photo Gallery:

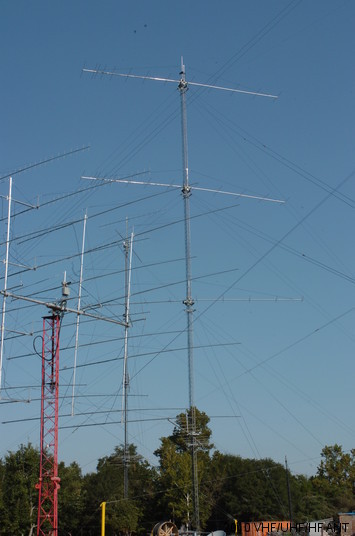

13/13/13/13 (35'/70'105'140') Six Meter OWA Array (partially hidden by 432 EME array in foreground)

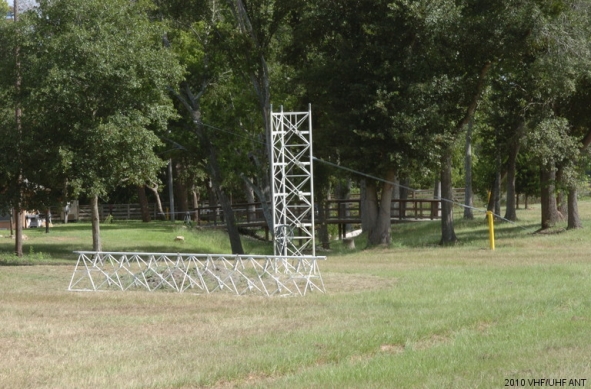

Six Meter EME tower  Array expected before Jan 2011.
